Features:
1): High performance PC diffuser, higher lumen;
2): IP65 rated Waterproof structure design;
3): Aluminum based LED module for better heat dissipation;
4): Easy connect the power supply;
Specification：
|
Type
|
Product |
IP65 Bulkhead
|
|
|
Model No. |
HI-C08XXP SERIES
|
|
Specification |
HI-C08275W |
HI-C08330W |
|
Dimension |
Φ275*90MM |
Φ330*90MM |
|
Input Voltage |
AC 220-240V |
AC 220-240V |
|
Power |
18W |
30W |
|
DF |
>0.7 |
>0.9 |
|
Flickering |
Non-flickering |
Non-flickering |
|
Flux |
1620 lm |
2700 lm |
|
Color Temperature |
2700K-6500K |
|
|
CRI (Ra>): |
Ra>80 |
Ra>80 |
|
Material |
PC Cover+Plastic base(ABS/PC for choice) |
|
|
IP Rating |
IP65 |
|
|
Certificates |
CE/RoSH |
|
|
Working Temp. |
-20℃-40℃/-4°F-104°F |
|

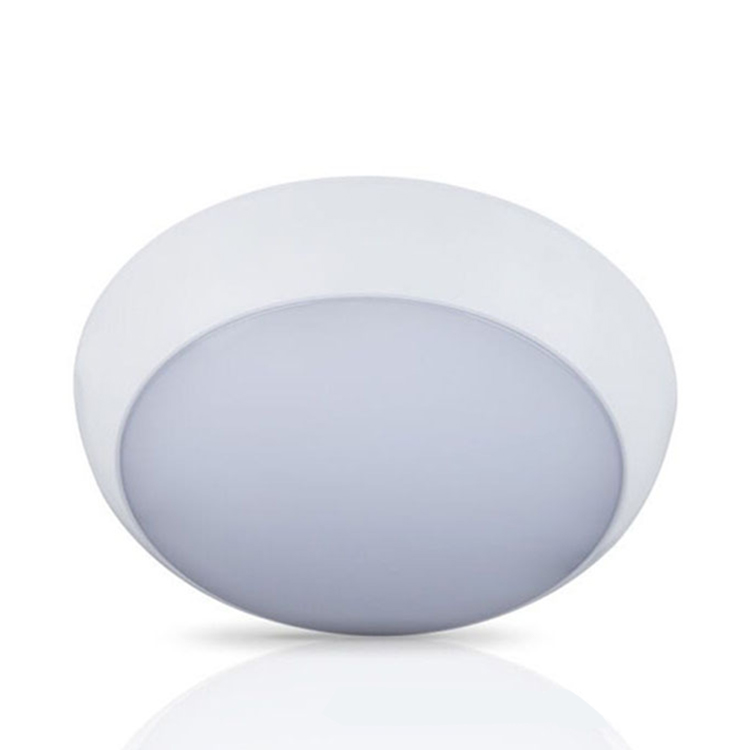

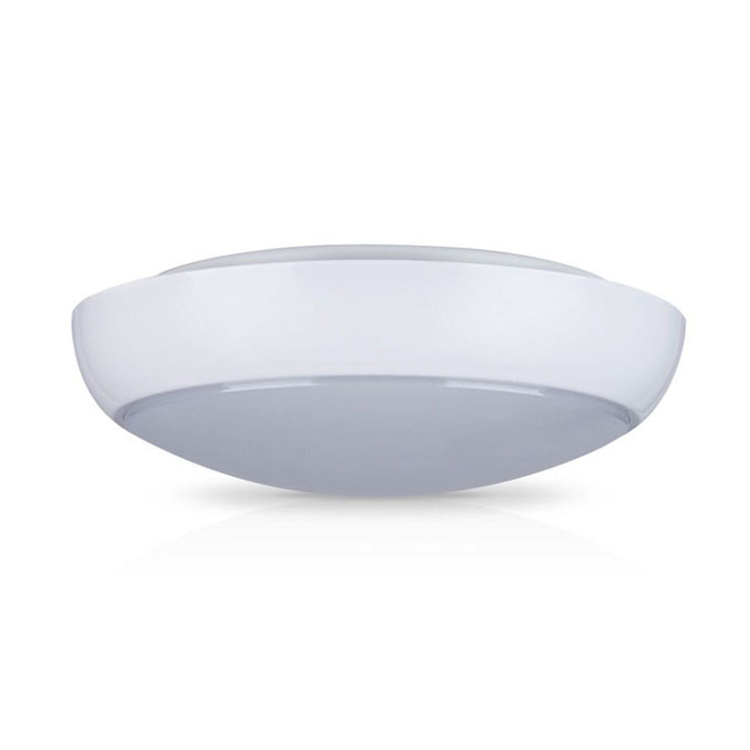

HI-C08XXP SERIES
IP65 Bulkhead
